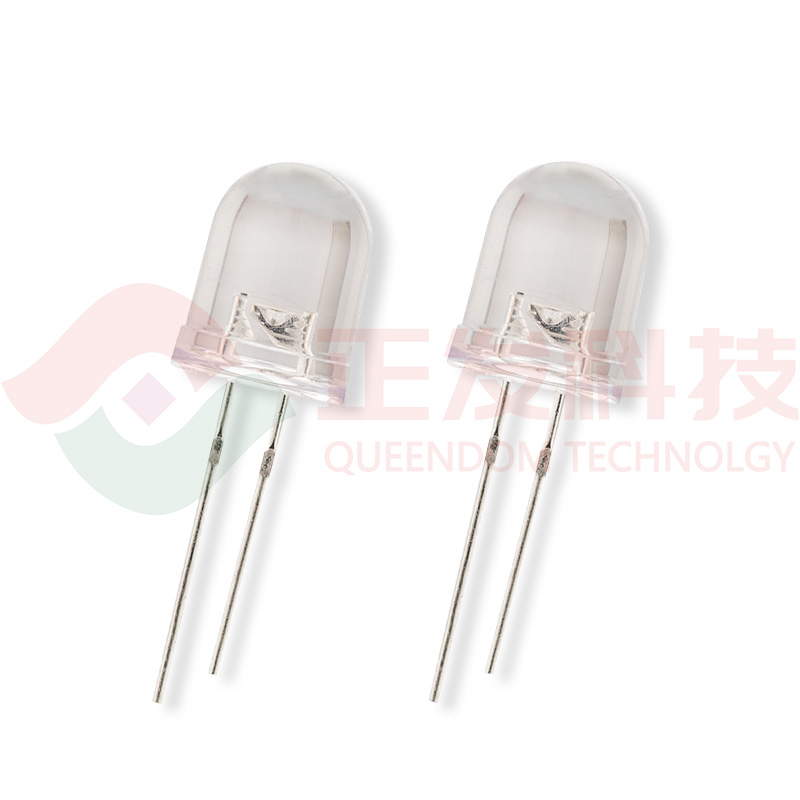

8mm UV紫光系列
规格PRODUCT

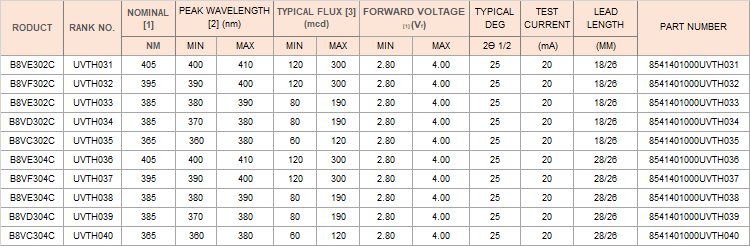

Table 1 Product performance of QUEENDOM uv led Colors at 20mA and 60mA , Tj=25ºC
Notes:
Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2
is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from
the CIE chromaticity diagram and represents the single wavelength which defines thecolor of the device.
